Passenger Information Display System (PIDS)
PIS & PAS System General
- TTDP and Free Grouping
- Bypass Function
- Time Synchronization
LCD
- Supply: 110 VDC (Max 80W)
- Interface: Ethernet (M12)
- Display Colors: 16.7M (8bits-true)
- Operation Temperature: 0 C to +60 C
- Dimension: 803 mm x 444 mm x 65 mm (by request)
- Active Area: 698.4(H) × 392.85 (V)
- Vibration & Shock: IEC 61373
- EMC/EMI: EN50121-3-2
PIS (Passenger Information System)
LED
- Supply: 110 VDC (20 W)
- Interface: Ethernet (M12)
- LED Distance: 8mm
- LED Color: Full Color
- Dimension: 986 mm x 135 mm x 70 mm (by request)
- Operation Temperature: -25 C to +70 C
PAS (Passenger Audio System)
- Passenger Speaker
- Impedance: 16Ω ± 10 % / AT 400HZ 1.0 V
- Power: 15W
- Frequency Response: 300Hz to 5000Hz (±7dB)
- Harmonic Distortion@ 1 kHz: ≤ 0.5% @ output power 3W
- Sound Pressure Level: 94dB±2dB 1m
- Dimension: 264 mm x 140 mm x 74.7 mm (by request)
- Operation Temperature: -25 C to +70 C

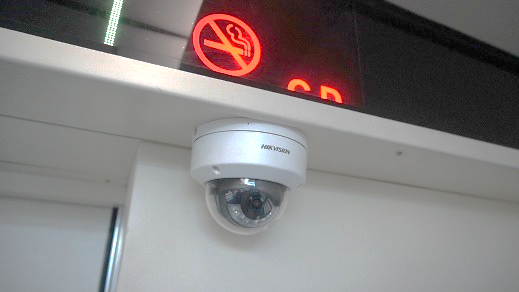

CCTV
- CCTV Unit
- Supply: PoE
- Bitrate: 2M
- General Function
- Real Time Camera Streaming
- Emergency Intercom linkage
- Playback and Download Recording with NVR

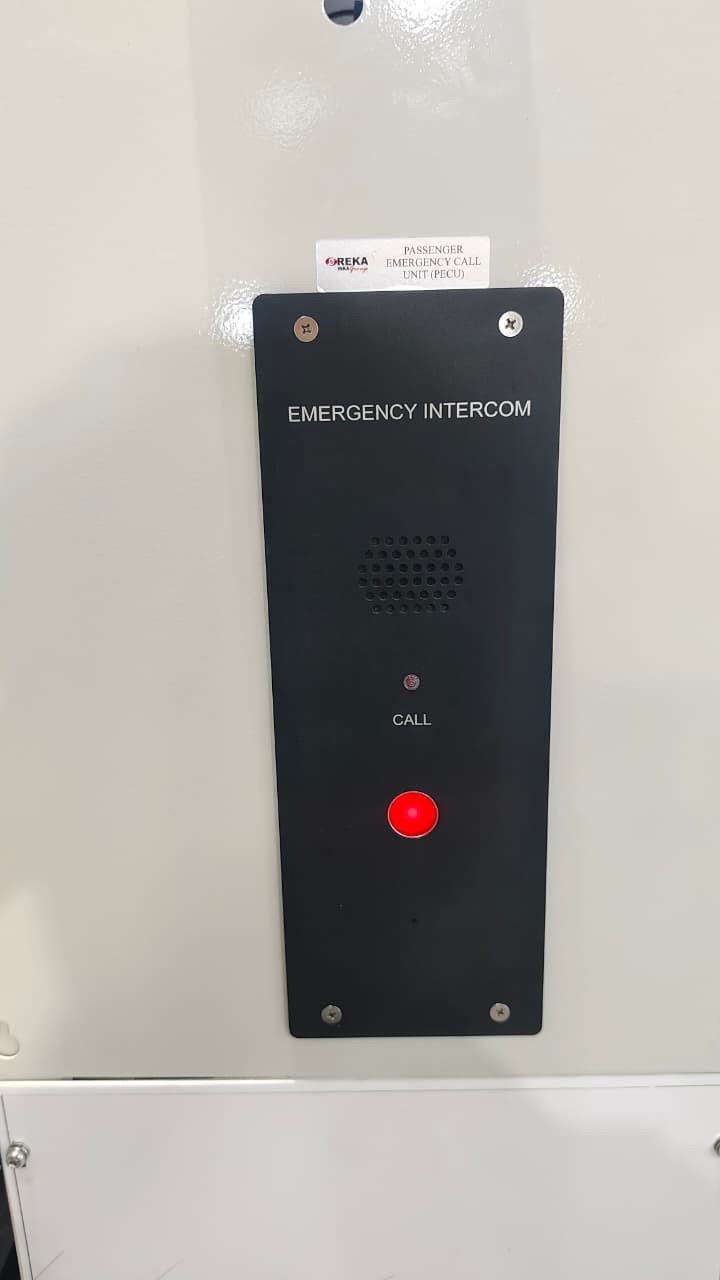

PEC (Passenger Emergency Communication)
- PEC Unit
- Supply: PoE (Max. 10W)
- Frequency Response: 200Hz to 10kHz, ± 7Db
- MIC Type: Electrical Condenser Type
- Interface: Metal Cylindrical Connector
- Operation Temperature: -25 C to +70 C
- Vibration & Shock: IEC 61373
- EMC/EMI: EN50121-3-2
